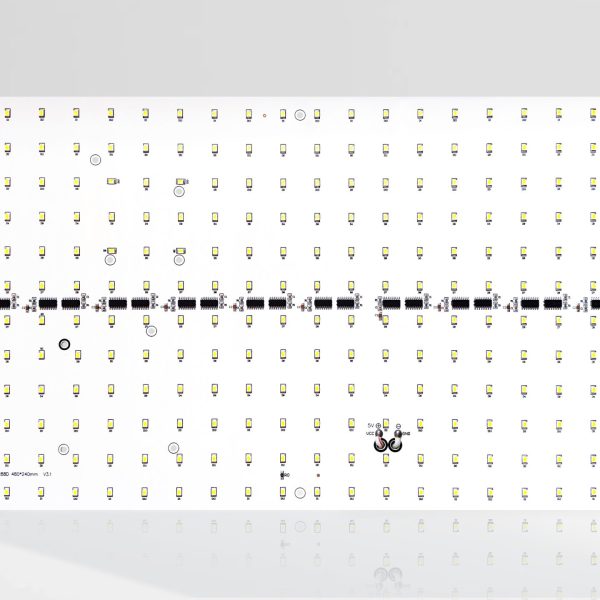

SN-P30-H-RGB+W

Features

• DC5V-24V low voltage universal power supply, safe and reliable, constant current IC drive, good brightness consistency.
• Adopt 1.2mm thick and high heat conduction aluminum substrate for heat dissipation to improve the service life of the product.

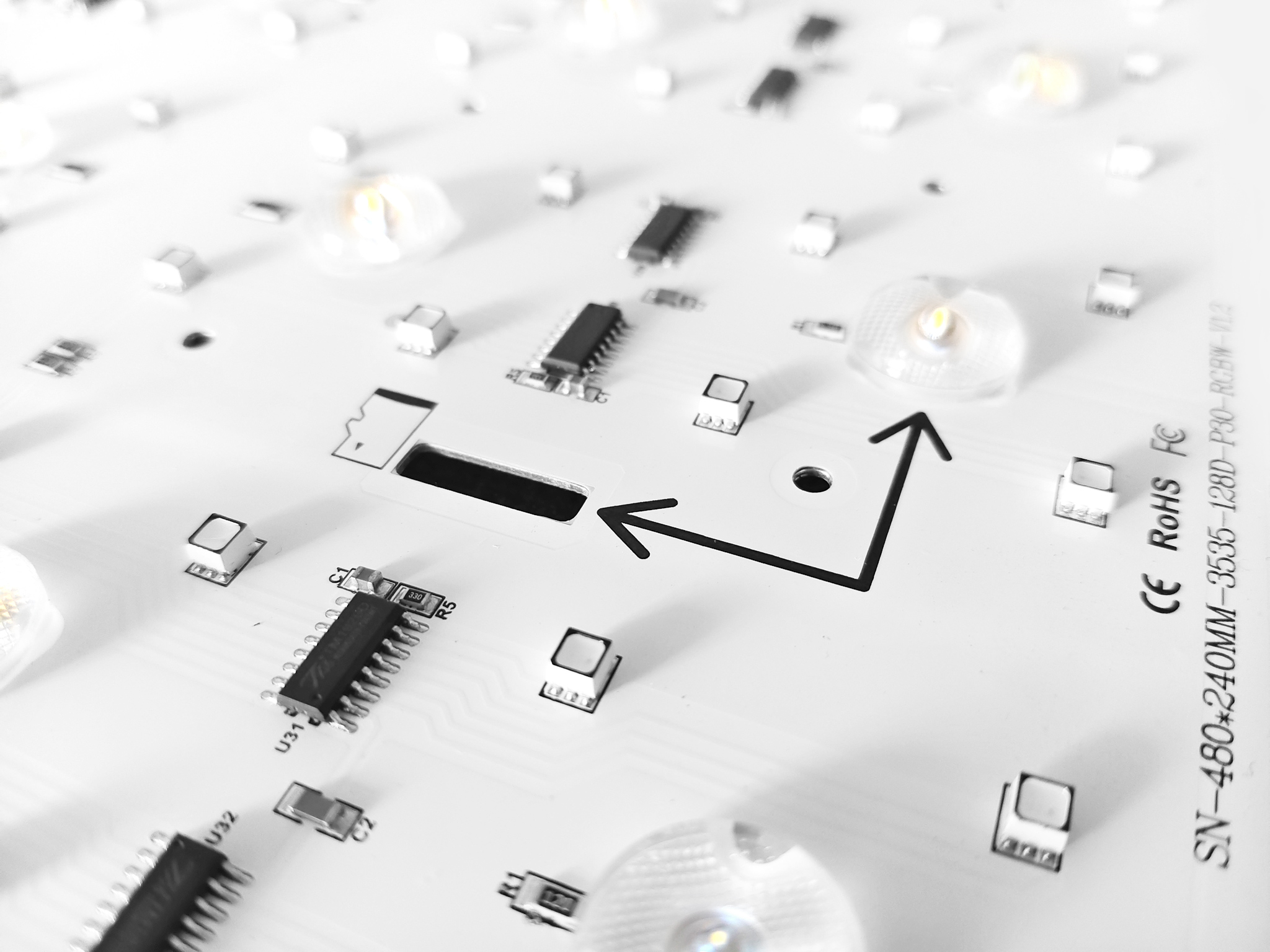

• Adopt the built-in drive IC SMD3535 lamp bead, the color of the light is highly consistent, which can realize full true color display.
• Adopt SMD3030  white light bead to fill the light, the bead has the characteristics of high brightness, low light fading, good color and long life.

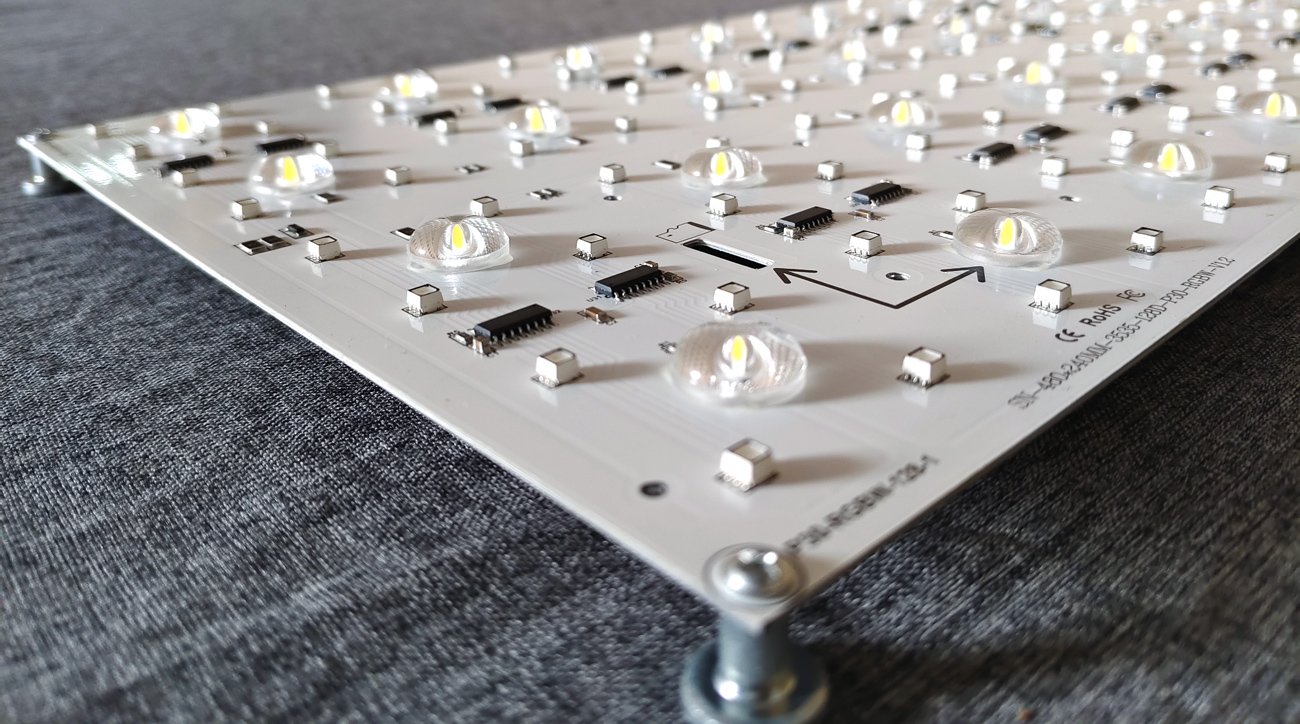

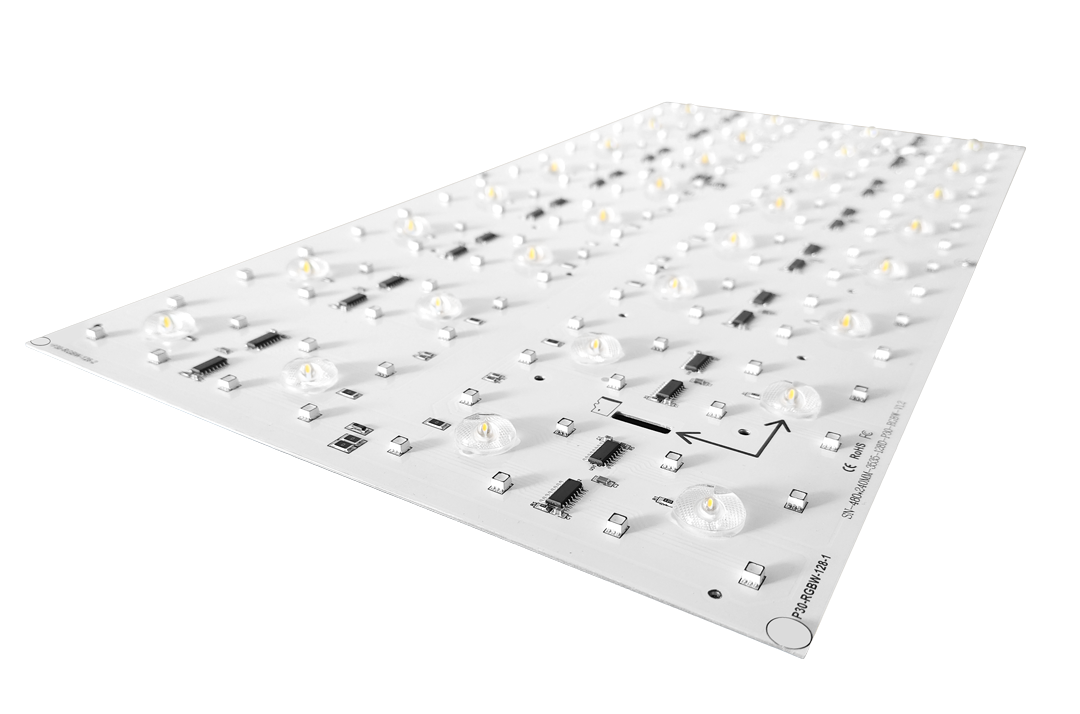

• The 170° large Angle optical lens is used to scatter the white light beads, so that the   lamp plate can emit light evenly without yellow spot, and the LED is suitable for lighting without dazzling.

Light Distribution

Using parameter

Dimension(mm)

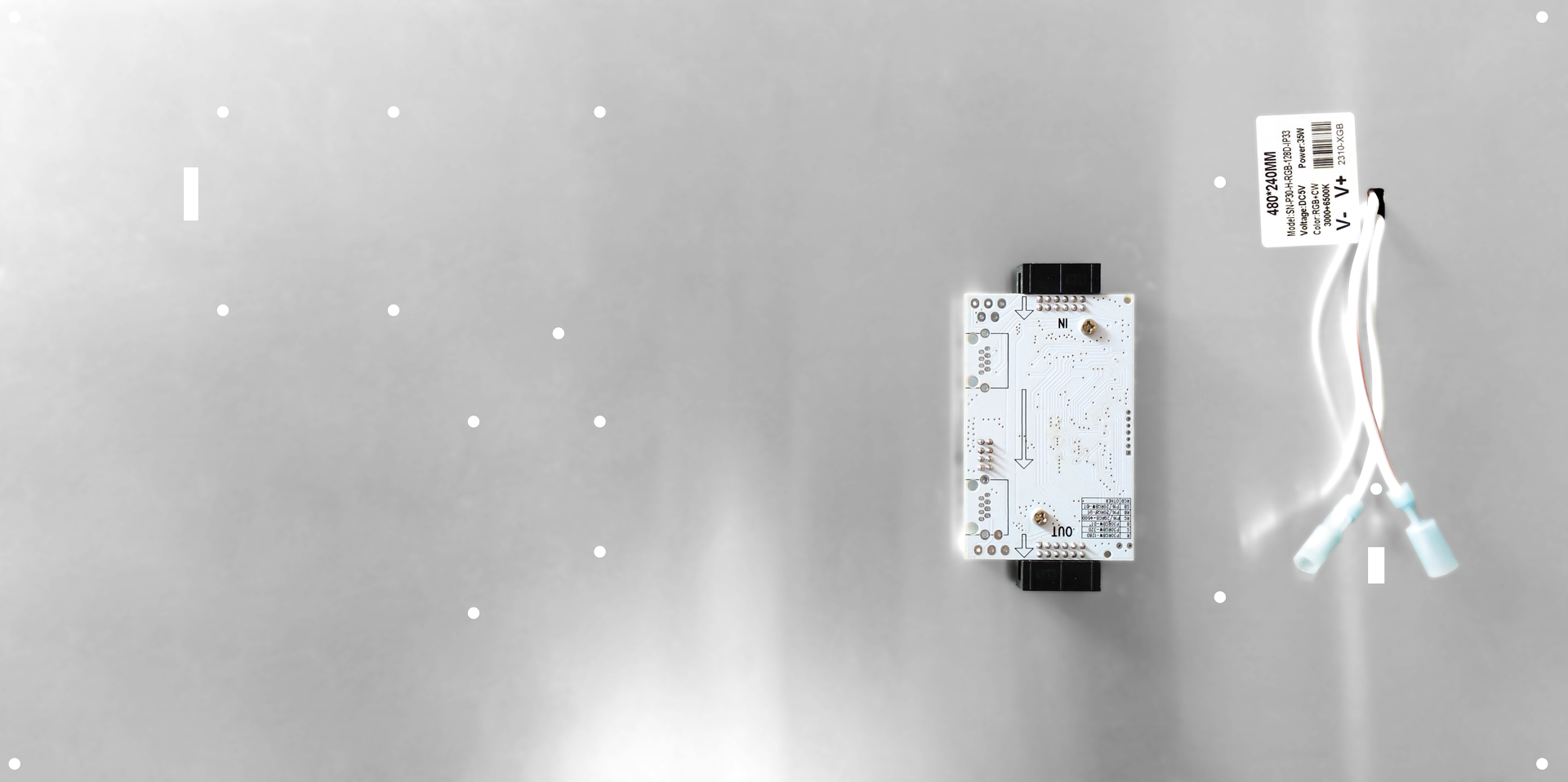

Controller installation diagram

Controller installation diagram

Setup Warning

1. the lamp board shall be installed IN the direction of the lamp board, the signal line shall be connected IN the direction of the out-in arrow, and the power cord shall be installed IN accordance with the positive and negative instructions.
2. the personnel receiving electricity must hold the electrician certificate. During the installation, the power should be evenly distributed behind the light box or uniformly placed in the distribution box.
3. the length of the light box should be determined according to the size of the light board and the thickness of the light box profile.
4. please refer to the wiring scheme in the connection diagram. The power line shall not be less than 2.5 square meters of pure copper wire national standard electronic wire. The maximum load current per square meter is 8A.
5. the positive and negative poles of the power supply and the male and female of the signal line should be plugged in properly, and should not be connected reversely, causing short circuit of the lamp board;
6. if the lamp board is not on when it is live, the signal line shall be broken first and then the power line shall be broken to damage the signal line;
7. adjust the electric plate to the appropriate torque when installing the lamp plate, select ST2.9 pan head screw, the pan head diameter cannot exceed 8mm, lock the aluminum profile, fix it at 4 corners, prevent excessive force from damaging the lamp plate and bead;
8. to ensure waterproof and anticorrosive, after the power cord is screwed into the terminal, it is recommended to inject the terminal with single-component silica gel (or neutral glass glue or waterproof grease) to cover the exposed copper wire of the power cord for protection.
9. please do not touch the product with live electricity or work with live electricity. Please turn off the power when maintaining the light box
10. it is recommended to use the switch power (with short-circuit protection, overvoltage protection and overcurrent protection) with 80% power.

Packaging

Packing instruction

Adopt inner package size：510*250*40mm

Carton size：530*280*320mm

2PCS/inner box，14PCS in 7 layers per carton

NW:6.57( 1± 10%)kg

GW:8.39( 1± 10%)kg

Note: the above package quantity and weight only refer to the package as shown in the figure. When other packages are used, the package quantity and weight will be different. The actual package shall prevail.
